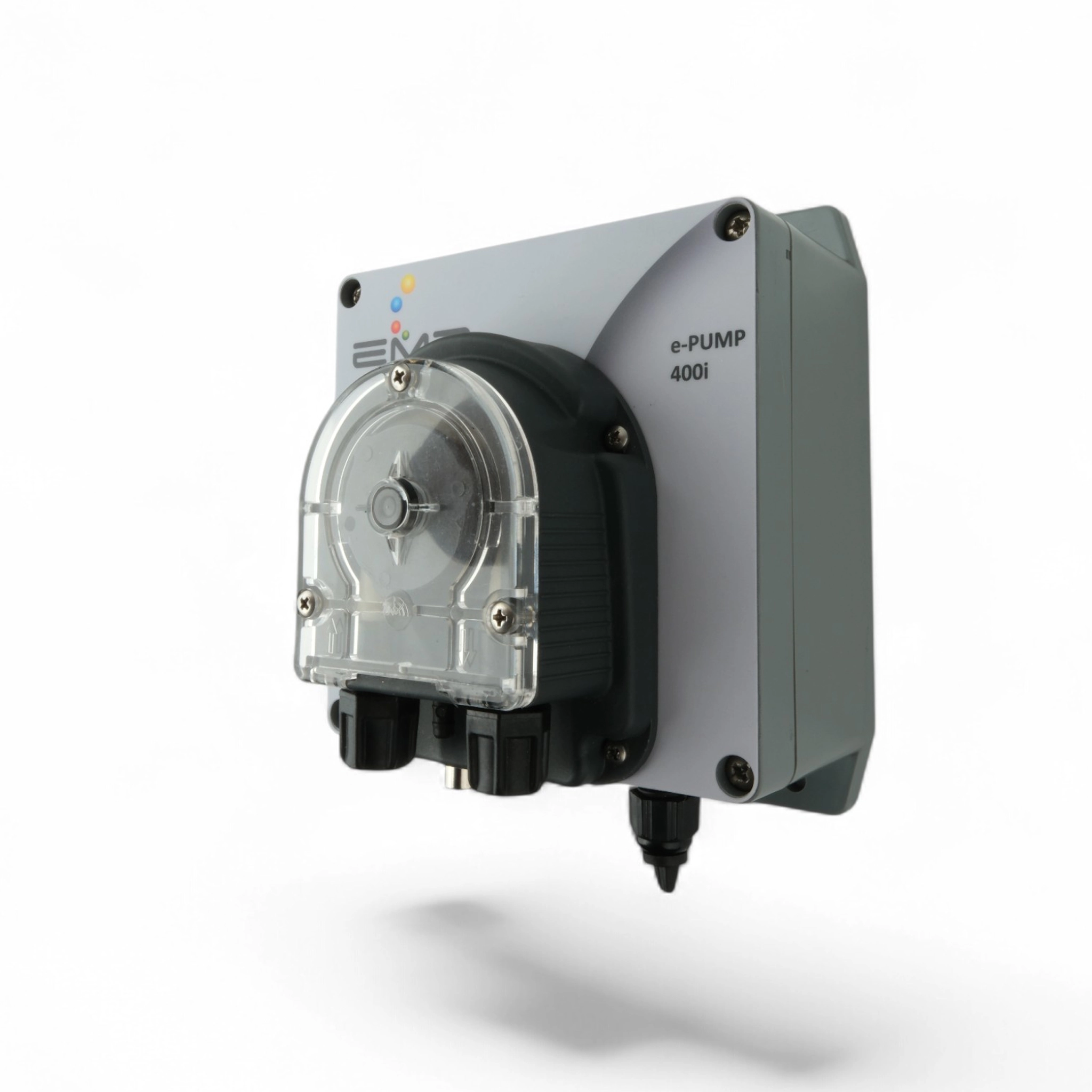

e-Pump 400i
Dosage Pump
Pumps > e-Pump 400i
e-Pump 400i
Dosage Pump
Overview
This model is a fixed‐type dosing pump capable of inductive (contactless) conductivity measurement. Specifically, it measures conductivity in the 0–1 S/cm range with 0.01 µS/cm resolution and ±0.01 S/cm accuracy. Using PT1000 sensors, it provides automatic temperature compensation from 0–100 °C. In addition, its IP 65 rating guarantees resistance to dust and water splashes under 0–50 °C operating conditions. Moreover, Bluetooth 5.0 connectivity enables remote monitoring, parameter adjustment, and data logging via mobile devices. It delivers a maximum flow of 2.8 L/min at 3 bar pressure—boostable to 5.1 L/min with the right hose—while consuming only 10 W of power.
Applications
It is primarily used in industrial water and wastewater treatment plants for inductive conductivity-based automatic chemical dosing in environments prone to corrosion and coating issues. Moreover, it integrates into hydroponic greenhouse systems for EC monitoring and nutrient solution management. In addition, it is chosen for maintaining water quality in pool, spa, and cooling tower systems. Furthermore, in chemical, pharmaceutical, and food industries, it serves reaction control purposes. In laboratory settings, contactless probe technology offers low-maintenance measurement capabilities.
Advantages
Contactless Measurement: Inductive probe technology prevents corrosion or fouling on the probe surface, reducing maintenance costs.
High Precision: 0.01 µS/cm resolution and ±0.01 S/cm accuracy provide confidence in critical applications.
Increased Flow with Hose: Although standard is 2.8 L/min, the correct hose can increase flow to 5.1 L/min.
Remote Monitoring: Bluetooth 5.0 access allows real‐time data viewing.
Durability: IP 65 protection ensures long service life in harsh field conditions.
Energy Efficiency: With just 10 W power consumption, it helps reduce operating costs.
| Specifications | Description |
|---|---|
|
TYPE: |
FIXED |
|
COMPATIBLE TEMPERATURE SENSORS: |
PT1000 |
|
TEMPERATURE MEASUREMENT RANGE: |
0.0 / +100 °C |
|
CONDUCTIVITY MEASUREMENT RANGE: |
0-1S/cm |
|
DEVICE SENSITIVITY: |
+/- 0.001 - 1S and 0.05 °C |
|
DEVICE RESOLUTION: |
0.01 µS/cm / 0.01 °C |
|
TEMPERATURE COMPENSATION: |
0 / +100 °C |
|
POWER SUPPLY: |
100-240v AC 50-60 Hz |
|
POWER CONSUMPTION: |
10 W |
|
OPERATING TEMP. RANGE: |
0-50 °C |
|
BLUETOOTH: |
5.0 AND MORE |
|
PROTECTION CLASS: |
IP 65 |
|
pH MEASUREMENT RANGE |
0-14 |
|
mV MEASUREMENT RANGE: |
+/- 1999 |
|
CALIBRATION: |
SINGLE POINT |
|
INPUT IMPEDANCE: |
>10^13 OHM |
|
Max. Lt(Lt/h) / P(Bar): |
2,8L/3B |
