e-Pump 300m
Dosage Pump
Pumps > e-Pump 300m
e-Pump 300m
Dosage Pump
Overview
e-Pump 300m is a multifunctional fixed‐type pump capable of simultaneous pH/ORP and conductivity measurement for automated dosing. First, it measures pH in the 0–14 range with 0.01 pH resolution and ±1999 mV accuracy; it also measures conductivity in the 0–1 S/cm range with 0.01 µS/cm resolution and ±0.01 S/cm accuracy. Using PT100, PT500, or PT1000 sensors, it provides automatic temperature compensation from 0–100 °C. Its IP 65 rating guarantees resistance to dust and splash water within a 0–50 °C operating range. Additionally, Bluetooth 5.0 support enables remote monitoring. It delivers up to 2.8 L/min flow at 3 bar pressure—boostable to 5.1 L/min with the right hose—offers five‐point pH/ORP calibration, and yet consumes only 10 W of power.
Applications

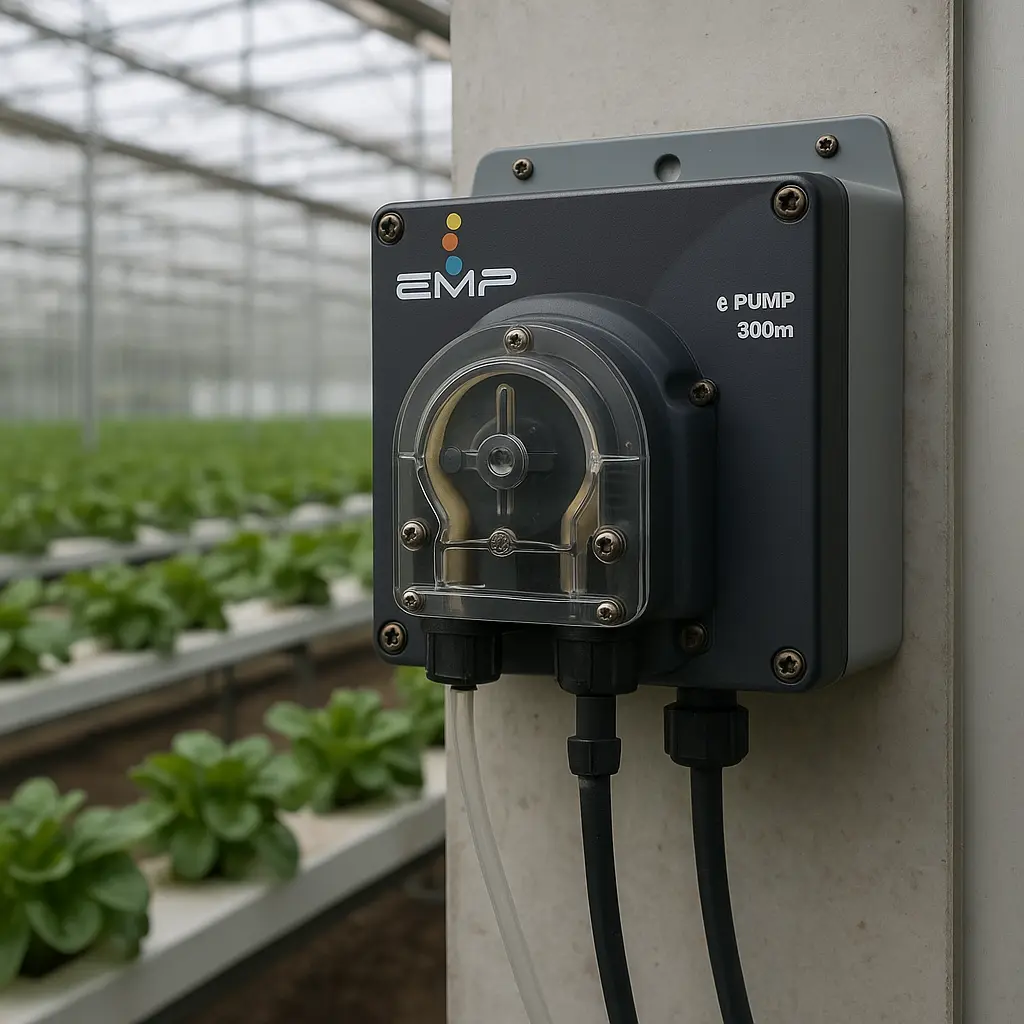

Primarily, it is used in industrial water and wastewater treatment plants; moreover, it is common in chemical, pharmaceutical, and food production facilities where both pH/ORP and conductivity control are required. Furthermore, in hydroponic greenhouses, it enables simultaneous pH/ORP and EC (electrolytic conductivity) monitoring and balancing. In addition, it supports integrated water‐quality management in pool and spa systems, as well as cooling towers. Finally, in R&D laboratories, it serves as an ideal solution for multi‐parameter experimental setups.
Advantages
Dual Measurement in One Unit: Dosing can be performed based on both pH/ORP and conductivity readings without separate analyzers.
Five‐Point Calibration: Provides enhanced accuracy and minimizes deviations.
Increased Flow with Hose: Although it operates at 2.8 L/min by default, the correct hose can increase flow to 5.1 L/min.
High Resolution & Accuracy: With 0.01 unit resolution for both pH/conductivity and 0.01 °C temperature, it detects even minute fluctuations.
Robust & Remote Control: IP 65 protection ensures reliability in harsh field conditions, while Bluetooth 5.0 offers remote monitoring capabilities.
Cost‐Effective Design: Low power consumption (10 W) combined with high performance delivers long‐term savings.
| Specifications | Description |
|---|---|
|
TYPE: |
FIXED |
|
COMPATIBLE TEMPERATURE SENSORS: |
PT100-PT500-PT1000 |
|
TEMPERATURE MEASUREMENT RANGE: |
0.0 / +100 °C |
|
CONDUCTIVITY MEASUREMENT RANGE: |
0-1S/cm |
|
DEVICE SENSITIVITY: |
+/- 0.01 - 1S and 0.05 °C |
|
DEVICE RESOLUTION: |
0.01 pH / 0.01 mV / 0.01 µS/cm / 0.01 °C |
|
TEMPERATURE COMPENSATION: |
0 / +100 °C |
|
POWER SUPPLY: |
100-240v AC 50-60 Hz |
|
POWER CONSUMPTION: |
10 W |
|
OPERATING TEMP. RANGE: |
0-50 °C |
|
BLUETOOTH: |
5.0 AND MORE |
|
PROTECTION CLASS: |
IP 65 |
|
pH MEASUREMENT RANGE |
0-14 |
|
mV MEASUREMENT RANGE: |
+/- 1999 |
|
COMPATIBLE pH BUFFERS: |
(4.01, 7.00, 10.01) or (4.00, 6.86, 9.18) |
|
CALIBRATION: |
UP TO 5 POINTS |
|
INPUT IMPEDANCE: |
>10^13 OHM |
|
Max. Lt(Lt/h) / P(Bar): |
2,8L/3B |
