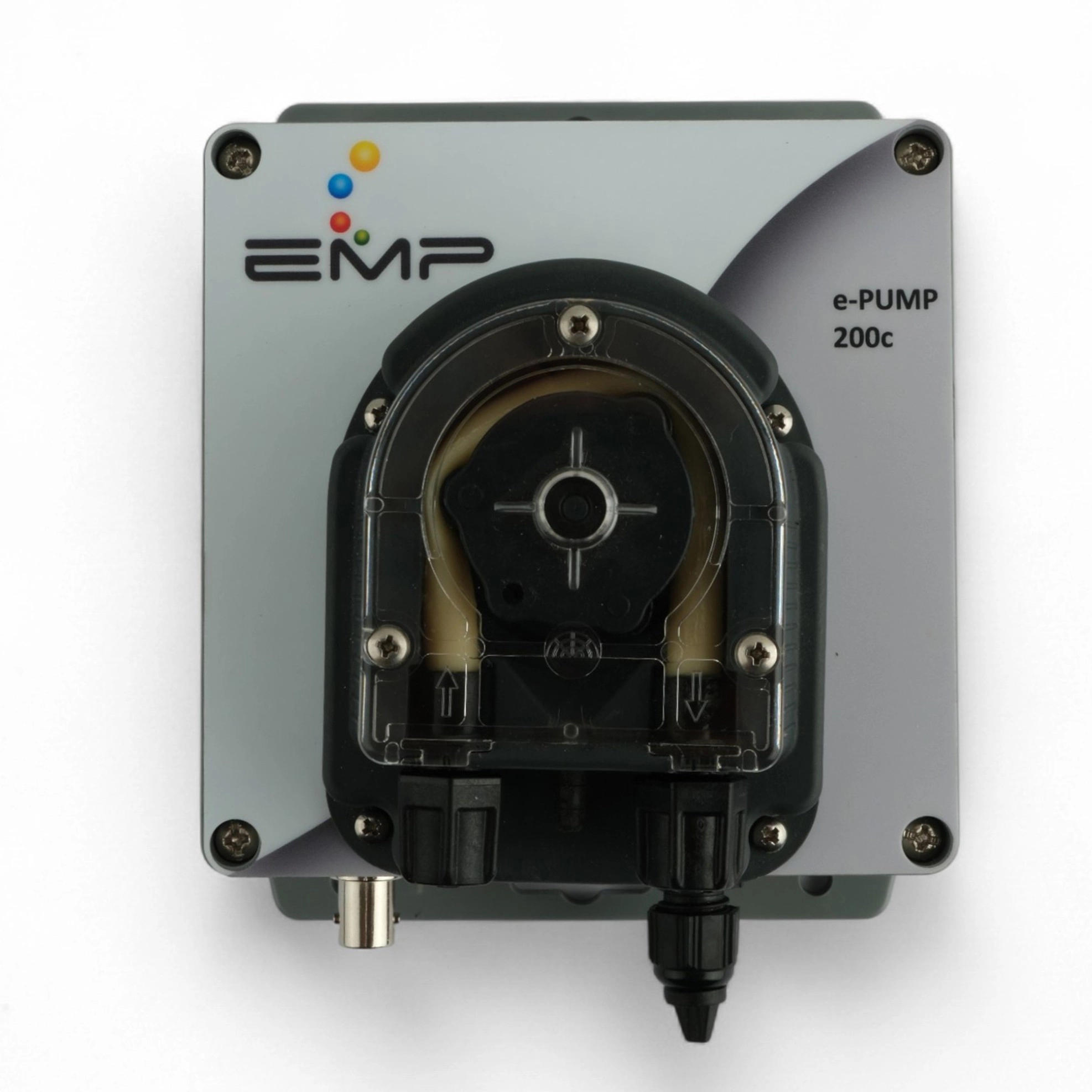

e-Pump 200c
Dosage Pump
Pumps > e-Pump 200c
e-Pump 200c
Dosage Pump
Overview
e-Pump 200c is a dosing pump that measures conductivity in the 0–1 S/cm range with 0.01 µS/cm resolution and ±0.01 S/cm accuracy. Moreover, PT1000 temperature sensors enable automatic temperature compensation from 0–100 °C. Meanwhile, its IP 65 rating provides robust resistance to dust and splash water within a 0–50 °C operating range. Bluetooth 5.0 connectivity allows remote monitoring, parameter adjustment, and data tracking via mobile devices. Though it delivers up to 2.8 L/min flow at 3 bar pressure, with a suitable hose connection, this can increase to 5.1 L/min. It consumes only 10 W of power.
Applications
In industrial water and wastewater treatment, it automates chemical dosing based on conductivity; in chemical and pharmaceutical sectors, it controls salinity or ionic concentration. Similarly, in hydroponic greenhouses, it serves as an EC (electrolytic conductivity) monitor. Furthermore, in pool and spa systems as well as cooling towers, it regulates water quality. Additionally, in laboratory settings requiring precise conductivity measurements, it delivers reliable performance.
Advantages
Rapid Commissioning: Single‐point calibration shortens setup time.
High Sensitivity: 0.01 µS/cm and ±0.01 S/cm accuracy capture even small fluctuations.
Increased Flow with Hose: Although standard is 2.8 L/min, the correct hose setup can boost flow to 5.1 L/min.
Low Maintenance: IP 65 protection ensures long service life under harsh field conditions.
Flexible Control: Bluetooth 5.0 access enables constant connectivity and data monitoring
| Specifications | Description |
|---|---|
|
TYPE: |
FIXED |
|
COMPATIBLE TEMPERATURE SENSORS: |
PT1000 |
|
TEMPERATURE MEASUREMENT RANGE: |
0.0 / +100 °C |
|
CONDUCTIVITY MEASUREMENT RANGE: |
0-1S/cm |
|
DEVICE SENSITIVITY: |
+/- 0.001 - 1S and 0.05 °C |
|
DEVICE RESOLUTION: |
0.01 µS/cm / 0.01 °C |
|
TEMPERATURE COMPENSATION: |
0 / +100 °C |
|
POWER SUPPLY: |
100-240v AC 50-60 Hz |
|
POWER CONSUMPTION: |
10 W |
|
OPERATING TEMP. RANGE: |
0-50 °C |
|
BLUETOOTH: |
5.0 AND MORE |
|
PROTECTION CLASS: |
IP 65 |
|
pH MEASUREMENT RANGE |
0-14 |
|
mV MEASUREMENT RANGE: |
+/- 1999 |
|
CALIBRATION: |
SINGLE POINT |
|
INPUT IMPEDANCE: |
>10^13 OHM |
|
Max. Lt(Lt/h) / P(Bar): |
2,8L/3B |
